Product details

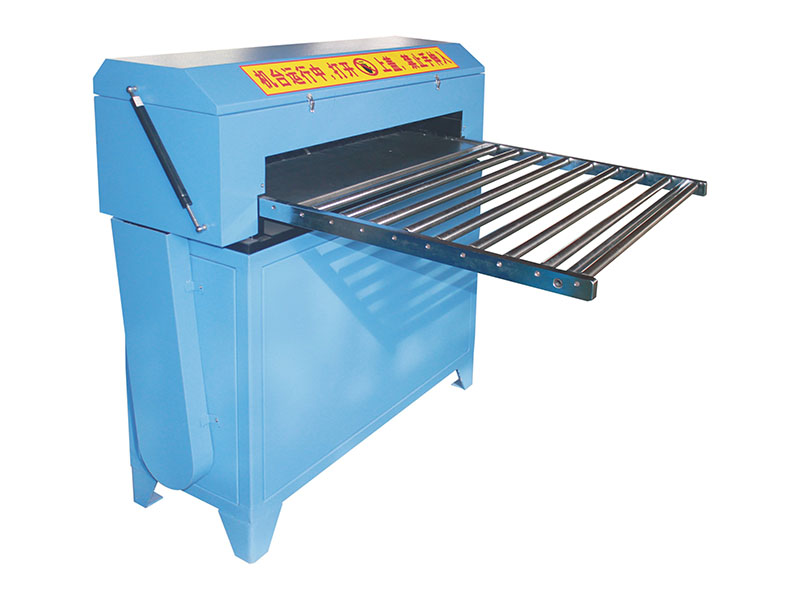

Product Name： Multifunctional slash machine

Release Date： 2018-11-20

Inquiry： Click Inquiry

Two Dimensional Code：

Description：

产品详情
Machine features
technical parameter
Standard device
optional devices
Applicable products

1. This machine can open the mixed film into a wide and uniform strip. The rubber can be directly fed after processing by this machine, which saves time and labor. It is a necessary equipment for rubber injection machine and rubber extruder. It can also be used to separate some plastic materials, such as PVC, etc.
2. The whole machine is composed of chassis, feeding and discharging workbench, frame, auxiliary axle, transmission, combined main axle and other components. It has simple structure, novel design, convenient operation, accurate opening, unlimited length, safe and efficient. A slitting machine can replace dozens of manual workers.
3. Cycloidal reducer and chain transmission have the advantages of low noise, low energy consumption, smooth transmission, large transmission torque, long service life and not easy to be damaged.

Model	NLQ-FTJ-850
Feed thickness	800 mm
Width of rubber compound	≤22 mm
Spindle speed	23.7r/min
Minimum width of each strip	28mm(unlimited length)
Total transmission ratio	1:43
power	3 KW
weight	380 kg
Outline size	115012501140mm
